suitability for use
|

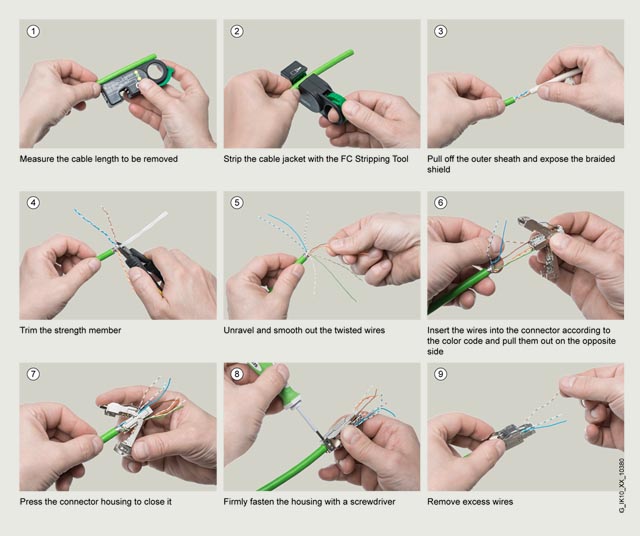

For connection to IE FC TP cables 4x2, suitable for fast assembly with the FastConnect system
|
For connecting 8-wire IE FC TP cables, Cat6A, metal enclosure, FC quick connection technology, for mounting on DIN rail (housing included in the delivery) and 19 inch Module Frame
|
|
transfer rate
|
|
|
|
transfer rate for Industrial Ethernet
|
10 Mbit/s, 100 Mbit/s, 1 000 Mbit/s, 10 000 Mbit/s
|
10 Mbit/s, 100 Mbit/s, 1 000 Mbit/s, 10 000 Mbit/s
|
|
interfaces
|
|
|
|
number of electrical connections
|
|
|
|
|
1
|
1
|
|
|
1
|
1
|
|
type of electrical connection
|
|
|
|
|
Integrated insulation-displacement contacts for 8-wire (AWG24) and 4-wire (AWG22) TP FC installation cables
|
integrated insulation-displacement contacts for FC TP cables (AWG24/AWG26/1, AWG24/AWG26/7)
|
|
|
RJ45 connector
|
|
|
type of electrical connection FastConnect
|
Yes
|
Yes
|
|
mechanical data
|
|
|
|
material of the enclosure
|
metal
|
metal
|
|
number of reuses
|
10
|
10
|
|
locking mechanism design
|
other
|
|
|
design, dimensions and weights
|
|
|
|
type of cable outlet
|
180° cable outlet
|
180° cable outlet
|
|
width
|
13.7 mm
|
14.7 mm
|
|
height
|
16 mm
|
20 mm
|
|
depth
|
55 mm
|
36 mm
|
|
net weight
|
35 g
|
40 g
|
|
connectable cable cross-section
|
6.5 ... 8 mm
|
8 ... 8 mm
|
|
connectable conductor cross-section
|
0.21 ... 0.33 mm²
|
|
|
ambient conditions
|
|
|
|
ambient temperature
|
|
|
|
|
-40 ... +85 °C
|
-40 ... +70 °C
|
|
|
-40 ... +85 °C
|
-40 ... +70 °C
|
|
|
-40 ... +85 °C
|
-40 ... +70 °C
|
|
relative humidity
|
|
|
|
|
95 %
|
95 %
|
|
protection class IP
|
IP20
|
IP20
|
|
product features, product functions, product components general
|
|
|
|
product feature
|
|
|
|
|
Yes
|
Yes
|
|
|
Yes
|
Yes
|
|
|
Yes
|
Yes
|
|
product component
|
|
|
|
|
Yes
|
Yes
|
|
standards, specifications, approvals
|
|
|
|
certificate of suitability
|
|
|
|
|
Yes
|
Yes
|
|
|
Yes
|
|
|
|
Yes
|
Yes
|
|
|
No
|
No
|
|
resistance to air pollution conformity according to ANSI/ISA-71.04
|
Yes
|
|
|
standard for structured cabling
|
Cat6A
|
Cat6A
|
|
reference code
|
|
|
|
|
XGA
|
KFA
|
|
