3RV2926-0K
Product

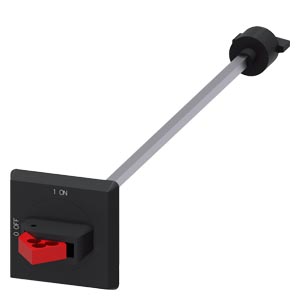

door-coupling rotary operating mechanism IP64 for circuit breaker size S00...S3, black 330 mm shaft with support !!! product phase-out !!! successor type is 3RV2926-1K drilling pattern changes
Notes
Product is no longer available. Successor:
3RV2926-1K Compare Products
List Price Show prices
Customer Price Show prices
DataSheet in PDF Download
Service & Support (Manuals, Certificates, FAQs...) Download
Product
Article Number (Market Facing Number) 3RV2926-0K
Product Description door-coupling rotary operating mechanism IP64 for circuit breaker size S00...S3, black 330 mm shaft with support !!! product phase-out !!! successor type is 3RV2926-1K drilling pattern changes
Product family Not available
Product Lifecycle (PLM) PM490:Start of final year of support
PLM Effective Date Product discontinued since: 10.10.2023
Notes
Product is no longer available. Successor:
3RV2926-1K Compare Products
Successor information
Successor 3RV2926-1K
Successor Description Door-coupling rotary operating mechanism For circuit breaker Size S00...S3, black 330 mm shaft
Price data
Region Specific PriceGroup / Headquarter Price Group 41E / 41E
List Price Show prices
Customer Price Show prices
Surcharge for Raw Materials None
Metal Factor None
Delivery information
Export Control Regulations ECCN : N / AL : N
Estimated dispatch time (Working Days) 3 Day/Days
Net Weight (kg) 0,385 Kg
Packaging Dimension 105,00 x 330,00 x 77,00
Package size unit of measure MM
Quantity Unit 1 Piece
Packaging Quantity 1
Additional Product Information
EAN 4011209841833
UPC 754554970356
Commodity Code 85389099
LKZ_FDB/ CatalogID CC-IC10
Product Group 5335
Group Code R711
Country of origin Italy
Compliance with the substance restrictions according to RoHS directive Since: 01.07.2006
Product class C: products manufactured / produced to order, which cannot be reused or re-utilised or be returned against credit.
WEEE (2012/19/EU) Take-Back Obligation No
REACH Art. 33 Duty to inform according to the current list of candidates
There is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern. We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly.
SCIP number
Classifications
  Not available
|
